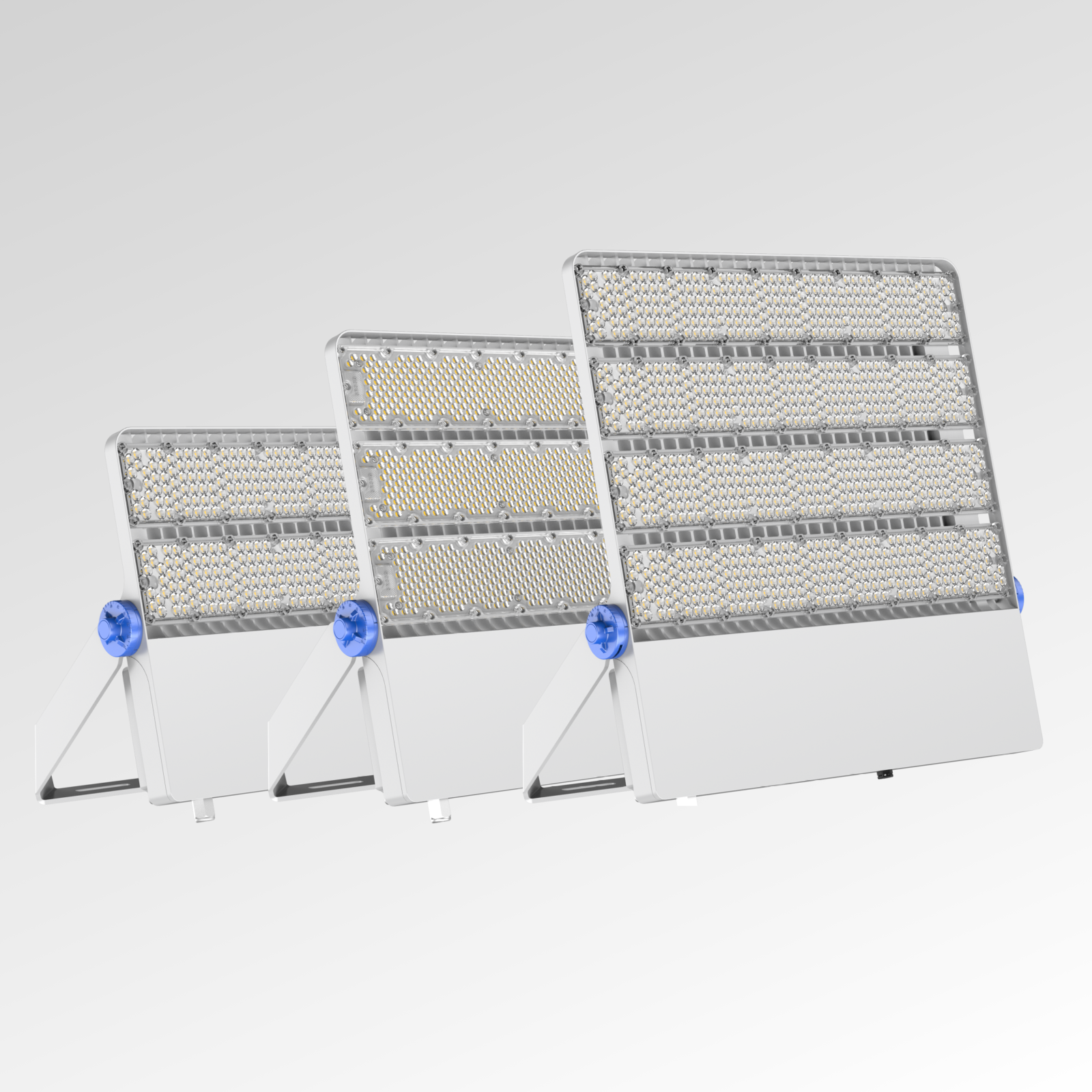

ST series

01 Overview

Product

LED Stadium Light

Series

Versions

STD

Application

Stadiums & arenas, outdoor sports fields, industrial yards, large parking areas, construction sites

Power ratings

400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 950W 1000W

Weight range

8.50 kg – 12.50 kg

Mounting

Bracket-based installation on any surface

Warranty

5 years (STD)

HS code

94054210

02 Electrical

Input

198 – 305V AC 50 – 60Hz

Electrical class

Class I (EU)

Surge protection

L-N: 6kV; L/N-PE: 10kV

Power factor

PF ≥ 0.95 @277V AC full load; ≥ 0.90 @277V AC @60% rated load

THD

THD ≤ 15% @230V AC full load; ≤ 20% @277V AC full load

Inrush current

< 80A @277V AC

Driver brand

Lifud FDA® series (non-isolated)

Control protocols

3-in-1 dimming + 12V AUX output, two-stage (optional)

03 Optical

LED chip brand

Cree LED®

LED chip type

SMD 3030 LED L80B10≥50kh

CCT

2700K 3000K 3500K 4000K 5000K 5700K 6500K

CRI

CRI 70 / 80 / 90

Beam angles

30° 60° 90° (symmetric)

Efficacy

> 165 lm/W (at 800W load)

04 Housing & Environment

Material

ADC12 die-cast aluminium

Finish

Powder coating

Standard color

Grey

Optic lens

UV-resistant polycarbonate

Corrosion resistance

High — indoor / outdoor, humid & coastal environments

Operating temp.

-40°C – +50°C

Operating humidity

20% – 95% RH, non-condensing

05 Protection & Compliance

Ingress protection

IP66 (IEC 60529)

Impact protection

IK10 (IEC 62262)

Safety marks

CE EMC RoHS

CE directive

2014/35/EU (Low Voltage Directive)

EMC directive

2014/30/EU (EMC Directive)

Operating humidity

20% – 95% RH, non-condensing

Models

Model

Versions

Input

Power

LED qty

Lens

Package (m)

Vol. (m³)

Net (kg)

Gross (kg)

ST-400

STD only

198 – 305V AC 50 – 60Hz

400 W

836

418 × 2

0.610 × 0.500 × 0.080

0.025

8.50

9.40

ST-450

STD only

198 – 305V AC 50 – 60Hz

450 W

836

418 × 2

0.610 × 0.500 × 0.080

0.025

8.50

9.40

ST-500

STD only

198 – 305V AC 50 – 60Hz

500 W

836

418 × 2

0.610 × 0.500 × 0.080

0.025

8.50

9.40

ST-550

STD only

198 – 305V AC 50 – 60Hz

550 W

836

418 × 2

0.610 × 0.500 × 0.080

0.025

9.00

9.90

ST-600

STD only

198 – 305V AC 50 – 60Hz

600 W

1254

418 × 3

0.610 × 0.590 × 0.080

0.029

10.30

11.30

ST-650

STD only

198 – 305V AC 50 – 60Hz

650 W

1254

418 × 3

0.610 × 0.590 × 0.080

0.029

10.30

11.30

ST-700

STD only

198 – 305V AC 50 – 60Hz

700 W

1254

418 × 3

0.610 × 0.590 × 0.080

0.029

10.70

11.70

ST-750

STD only

198 – 305V AC 50 – 60Hz

750 W

1254

418 × 3

0.610 × 0.590 × 0.080

0.029

10.70

11.70

ST-800

STD only

198 – 305V AC 50 – 60Hz

800 W

1672

418 × 4

0.690 × 0.610 × 0.150

0.034

12.00

13.10

ST-850

STD only

198 – 305V AC 50 – 60Hz

850 W

1672

418 × 4

0.690 × 0.610 × 0.150

0.034

12.00

13.10

ST-900

STD only

198 – 305V AC 50 – 60Hz

900 W

1672

418 × 4

0.690 × 0.610 × 0.150

0.034

12.50

13.60

ST-950

STD only

198 – 305V AC 50 – 60Hz

950 W

1672

418 × 4

0.690 × 0.610 × 0.150

0.034

12.50

13.60

ST-1KW

STD only

198 – 305V AC 50 – 60Hz

1000 W

1672

418 × 4

0.690 × 0.610 × 0.150

0.034

12.50

16.60
