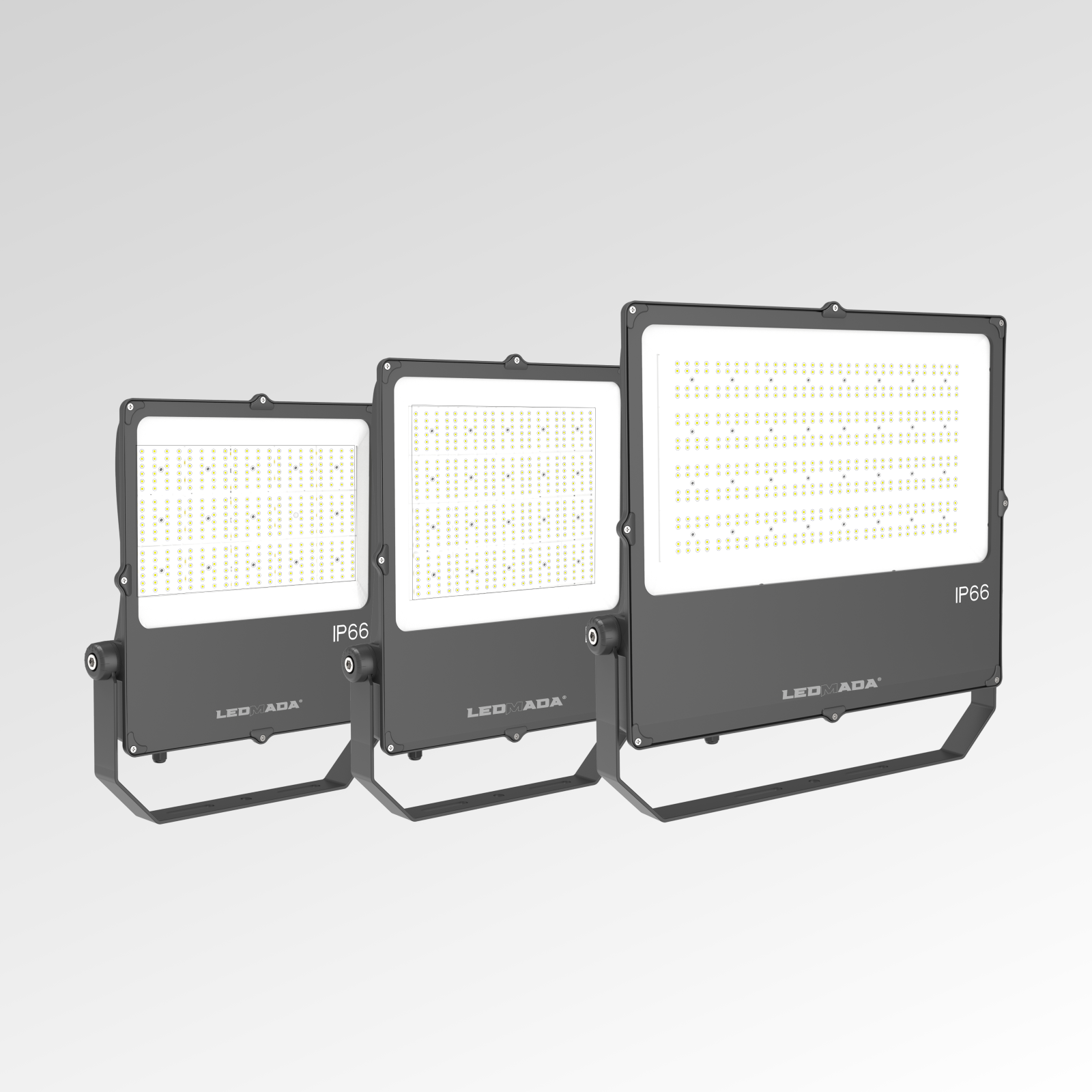

FL series

01 Overview

Product

LED Flood Light

Series

Versions

STD | PRO

Application

Indoor / Outdoor — Warehouses, Factories, Workshops, Hangars

Power ratings

10W 20W 30W 50W 80W 100W 120W 150W 180W 200W 250W 300W

Weight range

0.43 kg – 8.50 kg

Mounting

Bracket-based installation on any surface

Warranty

5 | 7 years (STD | PRO)

HS code

94054210

02 Electrical

Input

100 – 305V AC 47 – 63Hz

Electrical class

Class I (EU)

Surge protection

Line-Earth 4kV/6kV; Line-Line 2 kV/4kV

Power factor

PF ≥ 0.98 @115V AC; ≥ 0.95 @230V AC; ≥ 0.93 @277V AC

THD

THD < 20% @load ≥ 50% (115/230V AC); @load ≥ 75% (277V AC)

Inrush current

Cold start max 85A (t_width = 500 µs @ 50% I_peak, 230V AC)

Driver brand

Mean Well® XLG / HLG series

Control protocols

1-10V DIM, DALI-2 (optional)

03 Optical

LED chip brand

Cree LED®

LED chip type

SMD 3030 LED L80B10=50kh

CCT

2700K 3000K 3500K 4000K 5000K 5700K 6500K

CRI

CRI 70 / 80 / 90

Beam angles

15° 30° 60° 90° 120° (symmetric) T2M(100°x155°) T3M(90°x155°) (assymetric)

Efficacy

> 160 lm/W (at 300W load)

04 Housing & Environment

Material

ADC12 die-cast aluminium

Finish

Powder coating

Standard color

Black

Optic cover

Tempered glass

Optic lens

UV-resistant polycarbonate

Corrosion resistance

High — indoor / outdoor, humid & coastal environments

Operating temp.

-40°C – +50°C

Operating humidity

10% – 95% RH, non-condensing

05 Protection & Compliance

Ingress protection

IP66 (IEC 60529)

Impact protection

IK08 (IEC 62262)

Safety marks

CE EMC RoHS

CE directive

2014/35/EU (Low Voltage Directive)

EMC directive

2014/30/EU (EMC Directive)

Operating humidity

10% – 95% RH, non-condensing

Models

Model

Versions

Input

Power

LED qty

Lens

Package (m)

Vol. (m³)

Net (kg)

Gross (kg)

FL-010

STD only

100 – 305V AC 47 – 63Hz

10 W

12 × 1

0.196 × 0.198 × 0.056

0.002

0.43

0.50

FL-020

STD only

100 – 305V AC 47 – 63Hz

20 W

12 × 2

0.260 × 0.185 × 0.060

0.003

1.20

1.30

FL-030

STD only

100 – 305V AC 47 – 63Hz

30 W

16 × 2

0.260 × 0.185 × 0.060

0.003

1.20

1.30

FL-050

STD | PRO

100 – 305V AC 47 – 63Hz

50 W

24 × 3

0.300 × 0.230 × 0.060

0.005

1.80

1.90

FL-080

STD | PRO

100 – 305V AC 47 – 63Hz

80 W

144

24 × 6

0.380 × 0.300 × 0.060

0.007

2.90

3.00

FL-100

STD | PRO

100 – 305V AC 47 – 63Hz

100 W

240

24 × 10

0.460 × 0.440 × 0.130

0.027

3.70

5.20

FL-120

STD | PRO

100 – 305V AC 47 – 63Hz

120 W

240

24 × 10

0.460 × 0.440 × 0.130

0.027

3.90

5.40

FL-150

STD | PRO

100 – 305V AC 47 – 63Hz

150 W

360

24 × 15

0.510 × 0.430 × 0.130

0.029

4.20

5.70

FL-180

STD | PRO

100 – 305V AC 47 – 63Hz

180 W

360

24 × 15

0.510 × 0.430 × 0.130

0.029

4.70

6.20

FL-200

STD | PRO

100 – 305V AC 47 – 63Hz

200 W

320

16 × 20

0.560 × 0.440 × 0.130

0.033

5.00

6.70

FL-250

STD | PRO

100 – 305V AC 47 – 63Hz

250 W

480

24 × 20

0.560 × 0.440 × 0.130

0.033

5.70

7.40

FL-300

STD | PRO

100 – 305V AC 47 – 63Hz

300 W

512

16 × 32

0.600 × 0.600 × 0.140

0.051

8.50

10.90
